Product Introduction Of Flame Retardant Silicone Self-amalgamation Tape
In March 2001,CASAC independently developed a new kind of insulation material:HB1522 Flame retardant silicone self-amalgamation tape in response to the demand of insulation materials under high&low temperature,high pressure and strong ultraviolet in the power industry,and the demand of domestic aircraft manufacturing and maintenance industry.
In April 2013,HB1522 passed the strict audit and obtained the product invention patent certificate of the State Intellectual Property Office.
Now it is widely used in the aircraft manufacturing industry.And in the power industry,it has been identified as an innovative and advanced new insulation material and has been recognized and gradually adopted by the power sector at all levels.
Up to now,there are successful application cases in 380V,10kV,35kV,110kV,220kV voltage levels of equipment.
Features：
Suitable for low or high voltage(380V-330kV),indoors or outdoors.No matter whether the shape of bare conductors and joints are regular or not,it can be wrapped for insulation protection.
1.Good high&low temperature resistant property,it can work at the temperature of
-60~200℃for a long time;
2.UV resistant,it can work in outdoor in the sun for a long time without aging and cracking;
Without any adhesive on the surface,ensure that it can run for a long time without loosening or falling off;
3.Anaerobic,anaerobic,flame retardant(self-extinguishing from fire);
4.Excellent insulation property;
5.The product of 0.8mm thickness is suitable for 380V~10kV,1.5mm thickness is suitable for 35kV~330kV.The insulation protection of 10kV only needs 0.8mm thickness,and a good insulation of 20kV/mm can be achieved by the two-layers bonding;
6.Extremely simple to operate,no need heating,no need tools;
7.Long life,guaranteed for 10 years,do not fall off and insulation strength does not reduce;
8.Strong elasticity,when stretching≤5 times of the length,when release it can rebound to the original length before stretching.
Invention Patent Certificate
Product Picture
Name：Flame Retardant Silicone Self-amalgamation Tape
Type：HB1522
Size：0.4×50×5000（suitable for 380V voltage）
0.8×50×5000（suitable for 10kV voltage and above）
0.8×100×5000（suitable for10kV voltage and above of large equipment）
Unit：mm
Color:Red、Green、Yellow、Black、Blue、Grey
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In 10kV Distribution Network（Ⅰ）
Insulation and protection of bushing on outdoor transformer high voltage side
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In 10kV Distribution Network（Ⅱ）

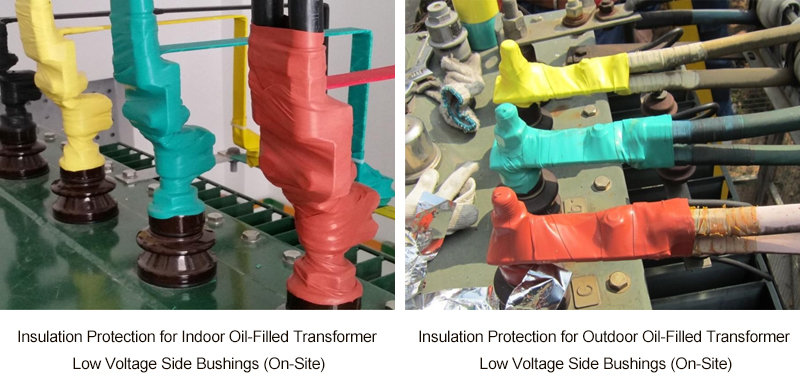

Insulation and protection of bushing on outdoor platform oil immersed transformer low voltage side
Insulation and protection of bushing on indoor oil immersed transformer low voltage side
Size：0.4 mm×50mm×5000mm
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In 10kV Distribution Network（Ⅲ）
Insulation and protection of bushing on outdoor transformer high and low voltage side
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In 10kV Distribution Network（Ⅳ）
Insulation and protection for the top end of 10kV lightning arrester on outdoor platform
Size：0.8mm×50mm×5000mm
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In 10kV Distribution Network（Ⅴ）
Insulation and protection of drop-out fuses(Bracket,cross arm,upper and lower connection end）
Size：0.8mm×50mm×5000mm
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In 10kV Distribution Network（Ⅵ）

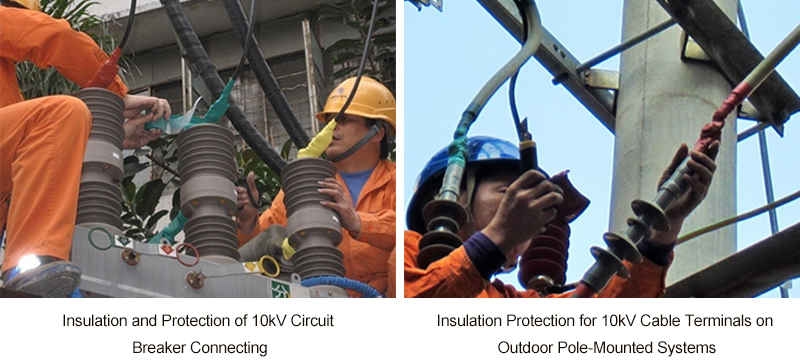

Insulation and protection of 10kV circuit breaker connecting(left)
Size:0.8mm×50mm×5000mm
Insulation and protection of 10kV cable terminal on outdoor platform(right)
Size：0.8mm×50mm×5000mm
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In 10kV Distribution Network（Ⅶ）
Insulation and protection of 10kV disconnector and the joint of both ends
Size：0.8mm×50mm×5000mm
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In 10kV Distribution Network（Ⅷ）
Insulation and protection for all kinds of clamps
Size：0.8mm×50mm×5000mm
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In 10kV Distribution Network（Ⅸ）
Insulation and protection of 10kV cable line tension clamp
采用HB1522辐照交联硅橡胶自融带防护跳线耐张线夹及跳线套导线，
采用HB1571卡扣式绝缘护套绝缘防护10kV架空裸导线，
实现10kV线路杆塔周围的全绝缘防护（上图）
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In 10kV Distribution Network（Ⅹ）

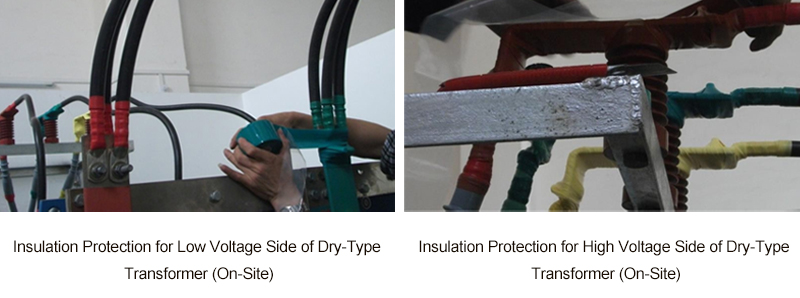

Insulation and protection of low voltage side of dry type transformer

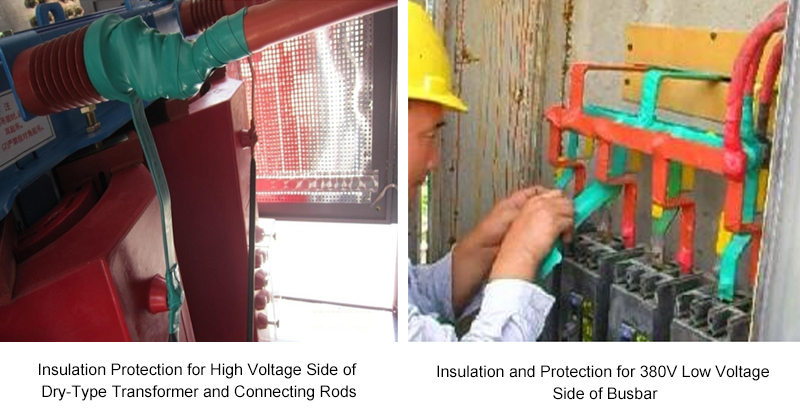

Insulation and protection of high voltage side of dry type transformer
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In 10kV Distribution Network(substation room)
Compared with traditional heat shrink materials,the use of flame retardant silicone self-amalgamation tape for fully insulated distribution network of substation room has the following advantages：
1.Better insulation effect；
2.The cost is lower,at least 1/3 of the amount saved than the heat shrink material；
3.No need fire,no need removal of the busbar,no need any tools,the process is simple and the construction time is shorter;
4.Effectively eliminate the occurrence of short circuit accidents caused by small animals,no longer need to carry out the electric door,window,cable trench tight sealing project,greatly saving the operation and maintenance costs.
Aplication Of HB1522 Flame Retardant Silicone Self -amalgamation Tape In 10kV Distribution Network（XI）
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In 10kV Distribution Network（XII）
The insulation protection of the busbar in the 10kV distribution network ring cabinet prevents flash,trip and short circuit caused by small animals or damp.
Insulation and protection of 380V low pressure side knife-switch
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In 10kV Distribution Network（XIII）
Insulation and protection of 10kV indoor oil substation room and high voltage side busbar to prevent snakes,mice,cats and other small animals or damp induced flash,tripping and short circuit.
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In 10kV Distribution Network（XIV）
Insulation and protection of 380V line tension clamp and other equipment
Size：0.4 mm×50mm×5000mm
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In 10kV Distribution Network（XV）
For low voltage wire connection,not loose warranty for ten years
Used to repair low-voltage cracked cable ends
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape in main network substation（I）
防护变电站主变变低10kV侧套管
Size：0.8mm×100mm×5000mm
缠绕绝缘防护变电站主变户外10kV变低母线桥
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape in main network substation（II）
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape in main network substation（Ⅲ）
HB1522 Flame Retardant Silicone Self-amalgamation Tape combined with HB1571 overhead line insulation sleeve was used to achieve full insulation in 35kV substation station,completely prevent the occurrence of tripping short circuit accidents.
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In High Voltage Transmission Line(I)
HB1522 Flame Retardant Silicone Self-amalgamation Tape combined with HB1571 overhead line insulation sleeve are applied to the lower end of 110kV line overhang,to prevent the occurrence of flashover,tripping and short circuit accidents due to bird droppings or dirty matter delay(insulator surface).
Size：0.8mm×50mm×5m
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape In High Voltage Transmission Line(II)
HB1522 Flame Retardant Silicone Self-amalgamation Tape combined with HB1571 overhead line insulation sleeve together applied in 110KV rigid drainage line.
HB1522 Application in 110kV main transformer bushing
Size：0.8mm×50（or 100）mm×5m
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape in 110kV transmission line
Size：0.8mm×100mm×5000mm
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape in 220kV transmission line(I)
HB1522 was wrapped around the outer layer of the clasp type insulating sheath
Aplication Of HB1522 Flame Retardant Silicone Self-amalgamation Tape in 220kV transmission line(II)
HB1522 was wrapped around the outer layer of the clasp type insulating sheath
